Full height depth blocking connects to steel joists or studs per plan on each end using two number ten sheet metal screws. The web features a two-inch cope with the web bent flush up each end as required. A contractor alternative permits a two-inch by two-inch by eighteen-gauge clip angle sized to the depth of the joist minus two inches, fastened with two number ten self-tapping screws on each leg.

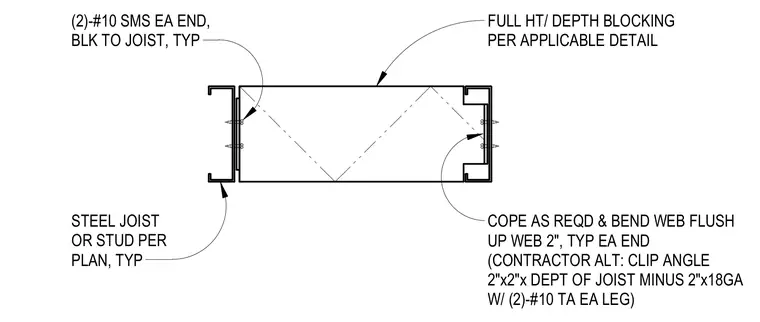

COPE AS REQD & BEND WEB FLUSH UP WEB 2", TYP EA END (CONTRACTOR ALT: CLIP ANGLE 2"x2"x DEPT OF JOIST MINUS 2"x18GA W/ (2)-#10 TA EA LEG) STEEL JOIST OR STUD PER PLAN, TYP (2)-#10 SMS EA END, BLK TO JOIST, TYP FULL HT/ DEPTH BLOCKING PER APPLICABLE DETAIL
