Structural · S-SQY44

Steel Beam Connection to Existing Concrete Slab Opening

Materials

Concrete

Elements

Floors / Slabs Decks Anchors / Embeds Roof / Floor Openings

Connections

Embed Plate

About this detail

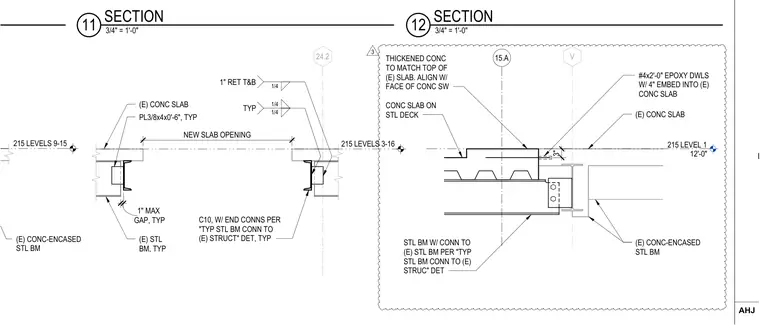

Steel beam framing conditions occur at a new slab opening in an existing concrete floor assembly. Channel headers such as C10 members connect to the existing steel beams using welded plate connections and 3/8-inch by 4-inch by 6-inch plates with fillet welds top and bottom. A one-inch maximum gap is detailed at the opening edge. Additional framing bears on existing concrete-encased steel beams with thickened concrete matching the top of the existing slab and aligned with the concrete face. No. 4 epoxy dowels at two feet long provide a four-inch embedment into the existing concrete slab alongside concrete slab on steel deck construction.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
