Structural · S-SQVH9

Exterior Dropped Spread Footing

Materials

Elements

Beams Walls Curtain Walls Facades / Cladding Floors / Slabs Foundations / Footings Stem Walls Arches

About this detail

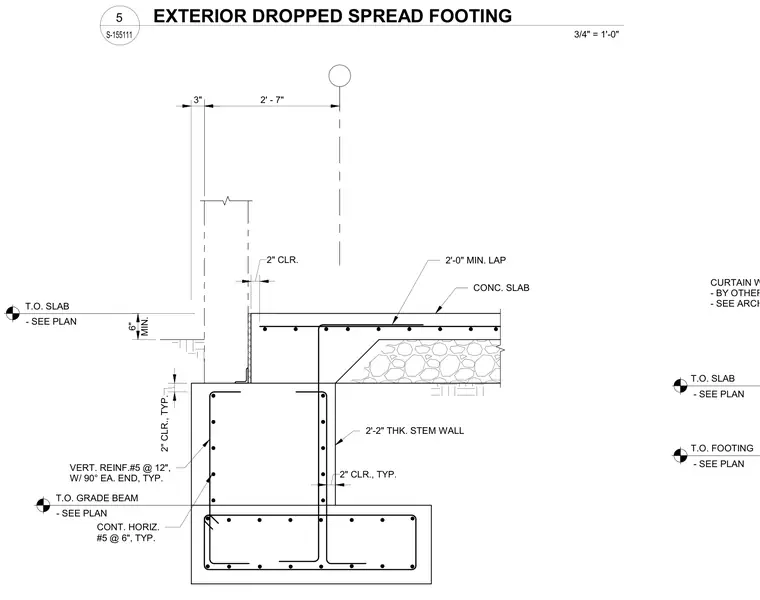

An exterior dropped spread footing carries a two-foot-two-inch thick concrete stem wall and adjacent concrete slab. The stem wall is reinforced with vertical number five rebar spaced at twelve inches on center with ninety-degree hooks at each end, maintaining two inches of typical clearance. Continuous horizontal number five rebar is spaced at six inches on center within the footing assembly, utilizing a two-foot-zero-inch minimum lap. A concrete slab with a minimum thickness of six inches bears adjacent to the stem wall, coordinated with a curtain wall or cladding assembly provided by others per architectural drawings. Top of slab, top of footing, and top of grade beam elevations are located per plan.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
