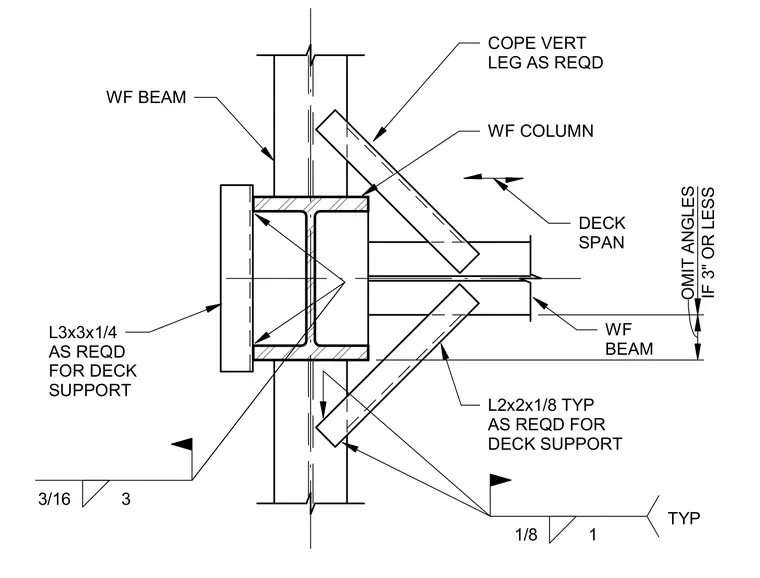

Metal decking and framing beams are supported at a wide flange column using structural steel angles. A larger L3x3x1/4 angle connects as required for deck support, with smaller L2x2x1/8 typical angles coped on the vertical leg as needed. Fillet welds of 3/16-inch and 1/8-inch sizes secure the connection components based on the deck span conditions. Angles are omitted if the deck span is 3 inches or less.
WF BEAM WF COLUMN L2x2x1/8 TYP AS REQD FOR DECK SUPPORT COPE VERT LEG AS REQD L3x3x1/4 AS REQD FOR DECK SUPPORT DECK SPAN WF BEAM IF 3" OR LESS OMIT ANGLES 3/16 3 1/8 1 TYP
