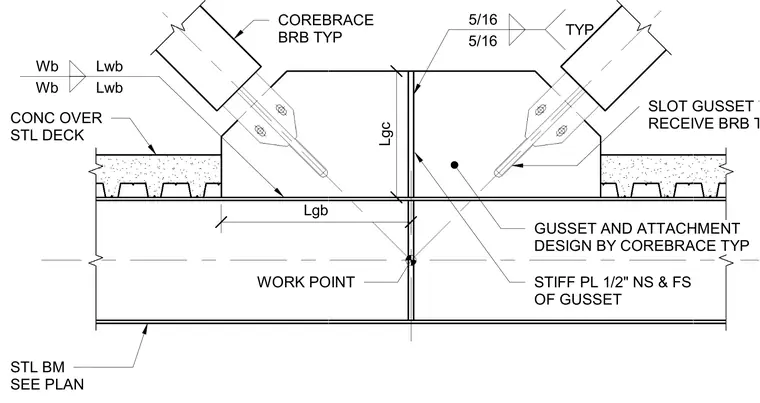

A CoreBrace buckling-restrained brace connects to a structural steel beam supporting a concrete fill over metal deck floor assembly. A gusset plate is slotted to receive the brace and welded to the steel beam with five-sixteenth-inch fillet welds. One-half-inch stiffener plates are welded to the near side and far side of the gusset plate. The gusset and attachment design are provided by CoreBrace.
WORK POINT COREBRACE BRB TYP 5/16 5/16 TYP GUSSET AND ATTACHMENT DESIGN BY COREBRACE TYP SLOT GUSSET TO RECEIVE BRB TYP CONC OVER STL DECK STL BM SEE PLAN STIFF PL 1/2" NS & FS OF GUSSET Wb Lwb Wb Lwb Lgb Lgc
