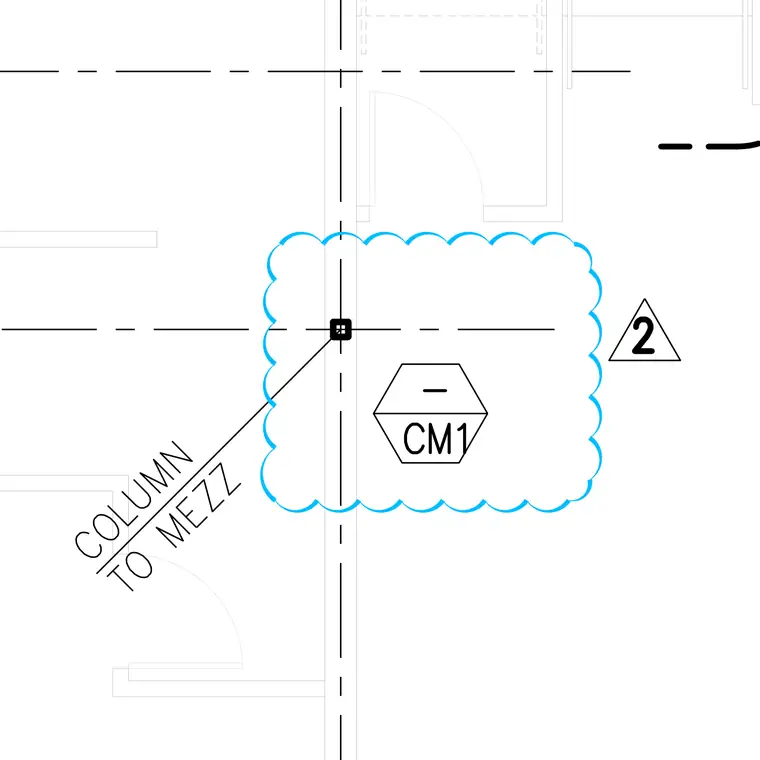

A structural column is located at the intersection of grid lines extending to the mezzanine level. The drawing indicates the column position relative to adjacent architectural walls and spatial partitions. A callout bubble references detail two and a marker designates column CM1.
