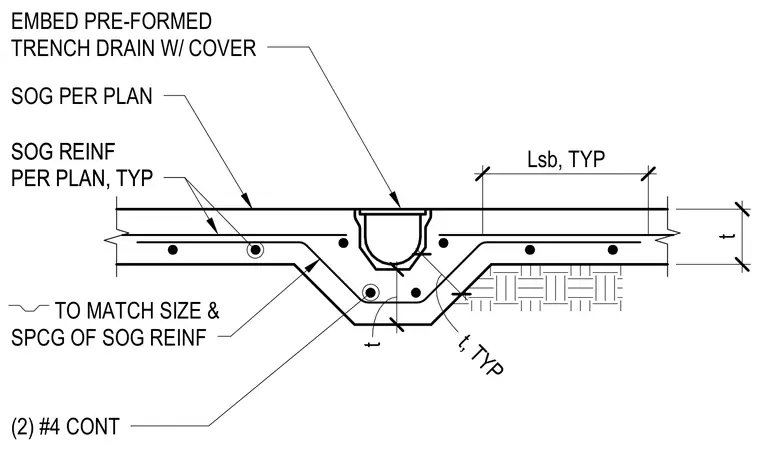

A pre-formed trench drain with cover is embedded directly into the concrete slab on grade, flanked by two continuous number four reinforcing bars at the thickened invert. The slab depth is designated by thickness t, with typical slab on grade reinforcement placed per plan throughout the section. The depressed concrete trench profile matches the size and spacing of the slab on grade reinforcement.
EMBED PRE-FORMED TRENCH DRAIN W/ COVER SOG PER PLAN TO MATCH SIZE & SPCG OF SOG REINF (2) #4 CONT 15" 5" 5 1/8" 5" Lsb, TYP t t t, TYP SOG REINF PER PLAN, TYP SOG REINF PER PLAN, TYP
