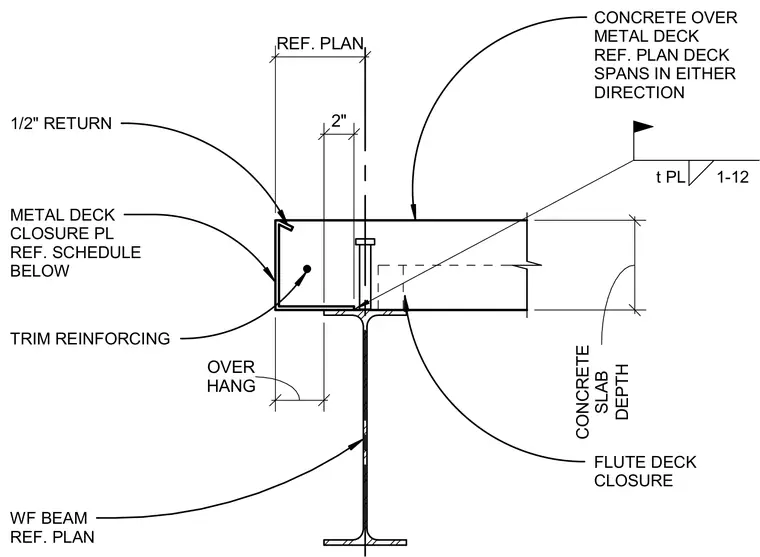

Concrete slab over metal deck bears on a wide-flange steel beam sized per plan. A metal deck closure plate with a one-half inch return and trim reinforcing forms the edge of the slab overhang. A flute deck closure seals the underside of the deck at the beam flange. Plate and gauge sizes are referenced to the schedule below.
CONCRETE OVER METAL DECK REF. PLAN DECK SPANS IN EITHER DIRECTION FLUTE DECK CLOSURE WF BEAM REF. PLAN METAL DECK CLOSURE PL REF. SCHEDULE BELOW REF. PLAN DEPTH CONCRETE SLAB t PL 1-12 1/2" RETURN TRIM REINFORCING 2" HANG OVER
