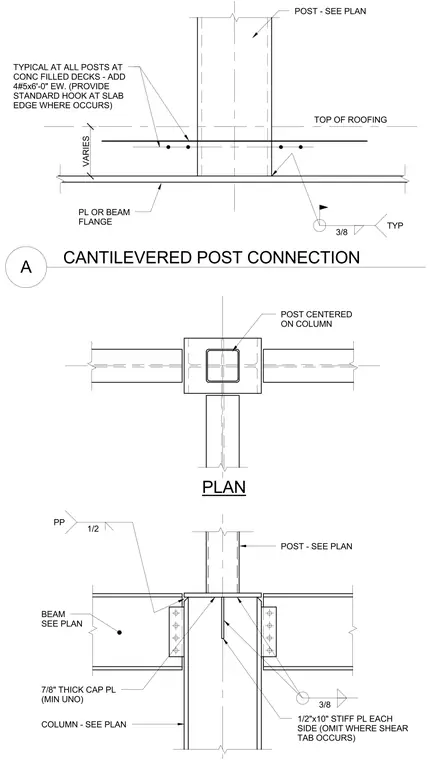

A cantilevered post connects to a structural steel column and beam assembly at a concrete-filled metal deck. The assembly features a seven-eighths inch thick cap plate provided at the top of the column and a post centered on the column per plan. Half-inch by ten-inch stiffener plates are provided on each side, omitted where a shear tab occurs. At concrete-filled decks, four number five reinforcing bars at six feet zero inches each way are added, with standard hooks provided at the slab edge where applicable. Welds are specified typically with three-eighths and one-half inch sizes.
A CANTILEVERED POST CONNECTION TYPICAL AT ALL POSTS AT CONC FILLED DECKS - ADD 4#5x6'-0" EW. (PROVIDE STANDARD HOOK AT SLAB EDGE WHERE OCCURS) PL OR BEAM FLANGE TOP OF ROOFING POST - SEE PLAN PLAN 7/8" THICK CAP PL (MIN UNO) COLUMN - SEE PLAN BEAM SEE PLAN 1/2"x10" STIFF PL EACH SIDE (OMIT WHERE SHEAR TAB OCCURS) POST - SEE PLAN POST CENTERED ON COLUMN VARIES 3/8 TYP 3/8 1/2 PP
