Concrete Shear Wall Reinforcing Plan Detail

Materials

Concrete

Elements

Walls Shear Walls Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development

About this detail

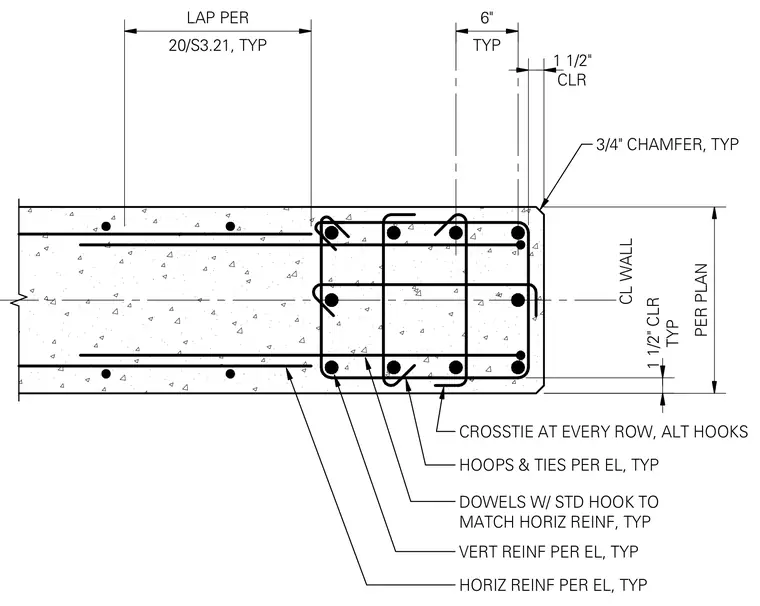

This concrete shear wall plan detail shows the corner reinforcement layout with a standard three-quarter-inch chamfer at the exterior edge. Vertical reinforcing and horizontal reinforcement are spaced per the elevation, with dowels featuring standard hooks matching the horizontal reinforcing size. Confinement is provided by hoops and ties per the elevation, augmented by wall crossties at every row with alternating hooks. Standard concrete cover is maintained at one and one-half inches, with lap splice lengths governed by detail 20 on sheet S3.21.
