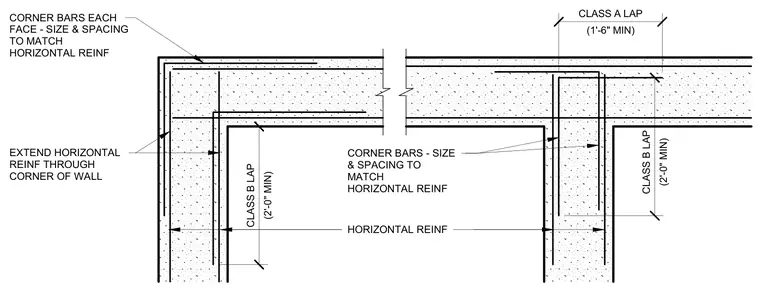

Concrete wall corners and T-intersections require horizontal reinforcing bars extended through the corner on each face, sized and spaced to match the standard horizontal reinforcement. Splices at these junctions utilize class A and class B lap lengths, with minimum dimensions of one foot six inches and two feet respectively, ensuring proper load transfer and continuity through the wall intersection.
CORNER BARS - SIZE & SPACING TO MATCH HORIZONTAL REINF HORIZONTAL REINF (1'-6" MIN) CLASS A LAP (2'-0" MIN) CLASS B LAP (2'-0" MIN) CLASS B LAP CORNER BARS EACH FACE - SIZE & SPACING TO MATCH HORIZONTAL REINF EXTEND HORIZONTAL REINF THROUGH CORNER OF WALL
