Structural · S-SPGQ2

Typical Concrete Beam and Girder Intersection and Edge Beam

Materials

Elements

About this detail

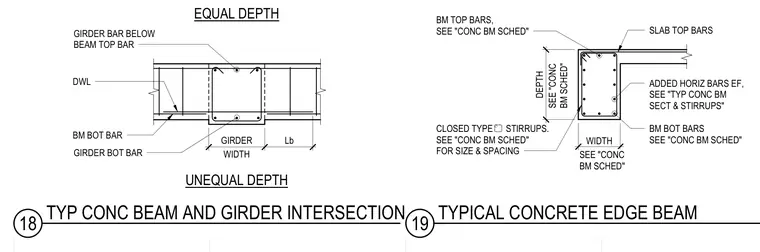

Standard concrete beam and girder intersections feature both equal and unequal depths, alongside a typical concrete edge beam with slab reinforcement. The equal and unequal depth details incorporate beam top bars, beam bottom bars, girder bottom bars, girder bars below the beam top, dowels, and closed-type stirrups sized per the concrete beam schedule. The edge beam detail contains slab top bars, added horizontal bars each face, beam bottom bars, and closed-type stirrups with dimensions referenced to the structural schedule.
