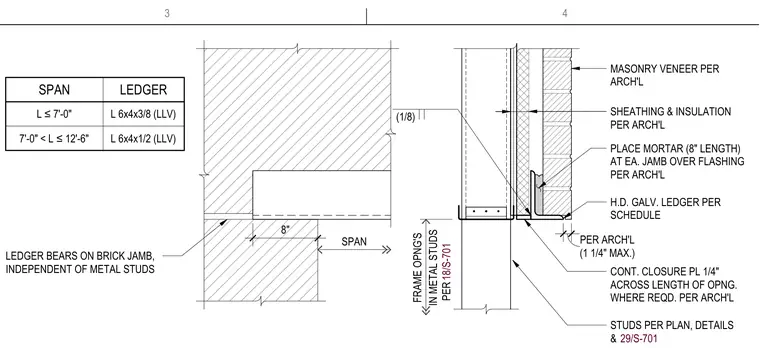

An independent masonry veneer angle lintel bears on a brick jamb, remaining structurally independent of the metal studs. The steel ledger angle is sized according to the span schedule, utilizing an L 6x4x3/8 (LLV) for spans up to 7'-0" and an L 6x4x1/2 (LLV) for spans between 7'-0" and 12'-6". A continuous 1/4" closure plate spans across the length of the opening where required per architectural documents. An eight-inch length of mortar is placed at each jamb over the flashing per architectural drawings. The hot-dip galvanized ledger supports the masonry veneer, set out from the sheathing and insulation over cold-formed steel framing.
SPAN LEDGER LEDGER BEARS ON BRICK JAMB, INDEPENDENT OF METAL STUDS L 6x4x1/2 (LLV) SPAN L 6x4x3/8 (LLV) L ≤ 7'-0" 7'-0" < L ≤ 12'-6" FRAME OPNG'S IN METAL STUDS PER SHEATHING & INSULATION PER ARCH'L CONT. CLOSURE PL 1/4" ACROSS LENGTH OF OPNG. WHERE REQD. PER ARCH'L MASONRY VENEER PER ARCH'L PLACE MORTAR (8" LENGTH) AT EA. JAMB OVER FLASHING PER ARCH'L H.D. GALV. LEDGER PER SCHEDULE STUDS PER PLAN, DETAILS & 8" (1 1/4" MAX.) PER ARCH'L 18/S-701 29/S-701 (1/8) 3 4
