An HSS8x8x3/8 elevator divider beam connects to a structural steel post below a concrete slab. The slab features a top elevation sized per plan and anchors an embed plate measuring 1/2 inch by 7 inches by 1 foot 7 inches with eight three-quarter-inch diameter by 5-inch long headed studs. Two L4x3-1/2x3/8 angles, each 5 and one-half inches long, attach each side to the embedded plate. A maximum half-inch gap is maintained at the post connection, which is welded with quarter-inch fillet welds on three sides.

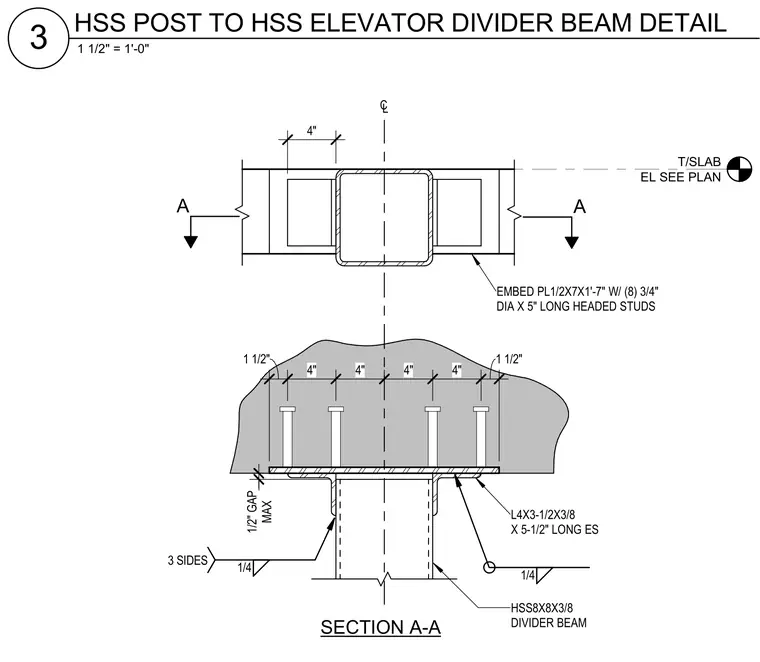

1 1/2" 4" 4" 4" 4" 1 1/2" C L A A T/SLAB EL SEE PLAN EMBED PL1/2X7X1'-7" W/ (8) 3/4" DIA X 5" LONG HEADED STUDS L4X3-1/2X3/8 X 5-1/2" LONG ES 1/4 4" HSS8X8X3/8 DIVIDER BEAM 1/4 3 SIDES MAX 1/2" GAP SECTION A-A 1 1/2" = 1'-0" HSS POST TO HSS ELEVATOR DIVIDER BEAM DETAIL 3
