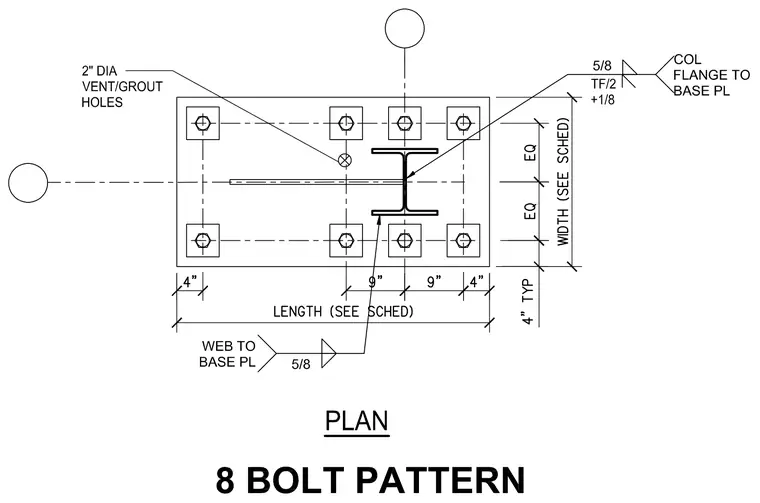

A structural steel column base plate connection features an eight bolt anchor pattern arranged symmetrically around the column profile. The steel column flange connects to the base plate with a 5/8 inch weld sized at flange thickness divided by two plus 1/8 inch. The column web connects to the base plate with a 5/8 inch fillet weld. A 2 inch diameter vent and grout hole is positioned within the base plate. The base plate dimensions include 4 inch edge distances, 9 inch bolt spacings, and equal gauge spacings sized per schedule.
