Concrete floor slab depressions feature a minimum six-inch transition zone with dowels matching the main slab reinforcing. Construction joints incorporate a continuous keyway with the edge tooled to a one-eighth-inch radius on each side. Control joints utilize a sawcut executed within the first twelve hours after pouring with a tooled one-eighth-inch radius edge. Thicknesses and structural reinforcement follow the footing and foundation plan.

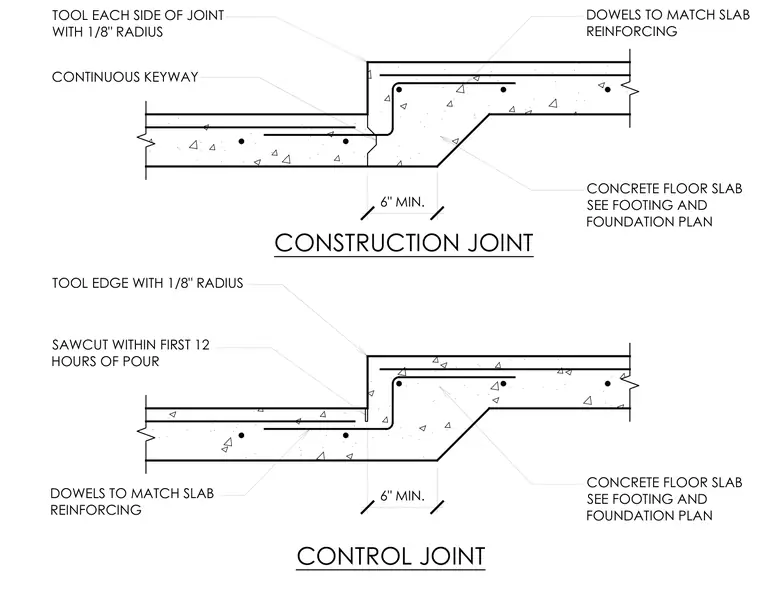

SAWCUT WITHIN FIRST 12 HOURS OF POUR TOOL EDGE WITH 1/8" RADIUS CONCRETE FLOOR SLAB SEE FOOTING AND FOUNDATION PLAN CONCRETE FLOOR SLAB SEE FOOTING AND FOUNDATION PLAN CONTINUOUS KEYWAY TOOL EACH SIDE OF JOINT WITH 1/8" RADIUS DOWELS TO MATCH SLAB REINFORCING DOWELS TO MATCH SLAB REINFORCING CONSTRUCTION JOINT CONTROL JOINT 6" MIN. 6" MIN. 1 A A A AL . 4 A A 4 A A A • . A< 4 A A A A * A -1 - 4° <7 4< 7 ' 4----- A
