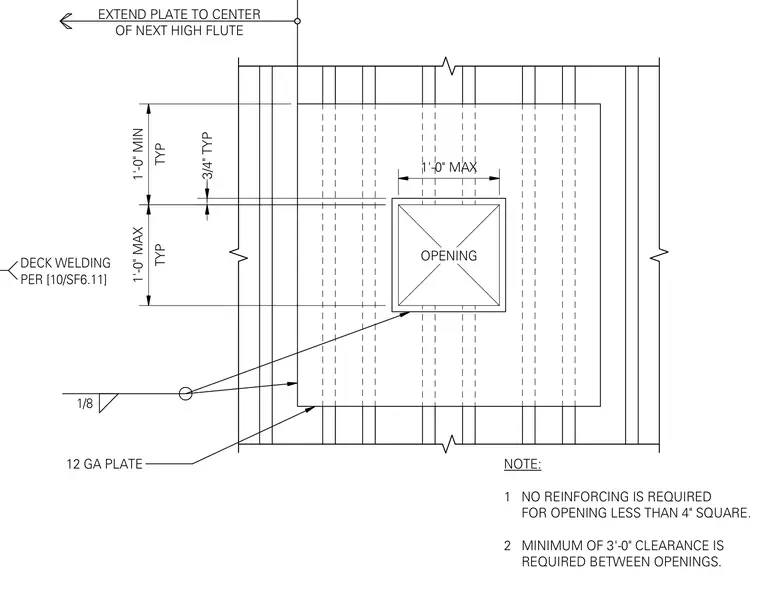

An untopped metal deck features a framed opening with a one-eighth inch fillet weld securing a 12 gauge plate around the perimeter. The plate extends to the center of the next high flute, maintaining a maximum one foot spacing and three-quarter inch typical clearance. Openings smaller than four inches square require no reinforcing, and multiple openings require a minimum of three feet of clearance between them. Deck welding is executed per standard specifications.
DECK WELDING PER [10/SF6.11] OPENING 3/4" TYP TYP 1'-0" MAX TYP 1'-0" MIN 1/8 12 GA PLATE NOTE: 1 NO REINFORCING IS REQUIRED FOR OPENING LESS THAN 4" SQUARE. 2 MINIMUM OF 3'-0" CLEARANCE IS REQUIRED BETWEEN OPENINGS. EXTEND PLATE TO CENTER OF NEXT HIGH FLUTE 1'-0" MAX
