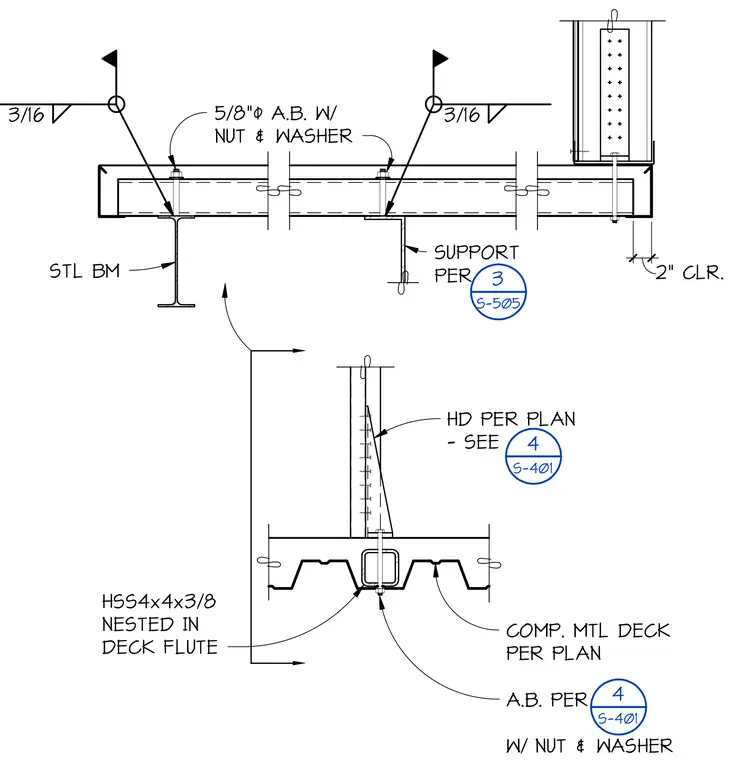

Composite metal deck bears upon a steel beam and a structural support configured per plan, secured with five-eighths-inch-diameter anchor bolts with nuts and washers. A hollow structural section measuring four by four by three-eighths inches nests inside the deck flute with a two-inch clearance, anchored by an anchor bolt with a nut and washer referenced to sheet S-401. A hold-down specified per plan connects to the nested structural tube and deck assembly as detailed on sheet S-401. Fillet welds of three-sixteenths-inch size are indicated at the beam connections.
4 S-401 HD PER PLAN - SEE COMP. MTL DECK PER PLAN A.B. PER W/ NUT & WASHER 4 S-401 HSS4x4x3/8 NESTED IN DECK FLUTE 2" CLR. 3 S-505 SUPPORT PER 3/16 3/16 STL BM 5/8" 0 A.B. W/ NUT & WASHER
