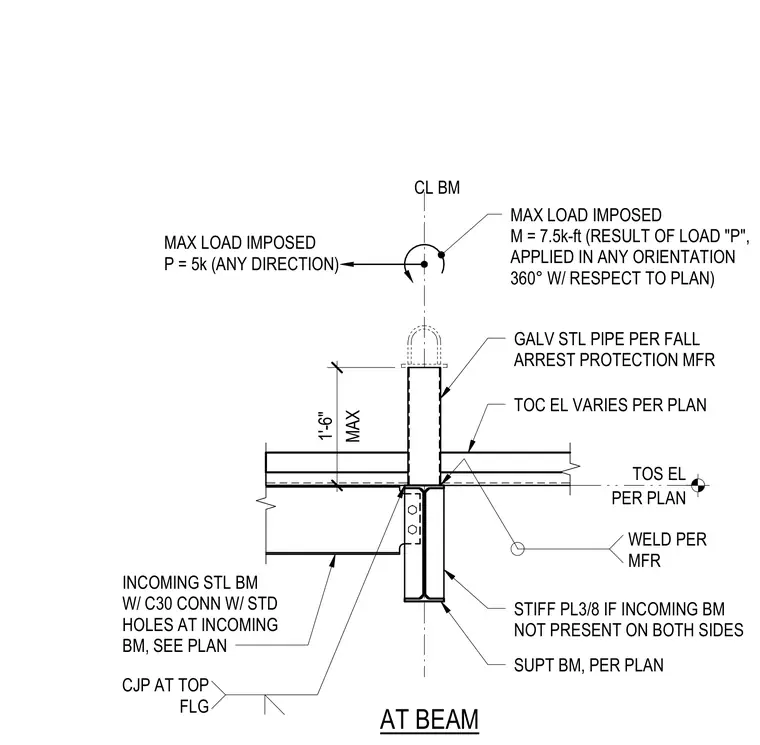

A galvanized steel pipe davit for fall arrest protection is supported by a structural steel beam sized per plan. A three-eighths-inch stiffener plate is provided if an incoming steel beam is not present on both sides of the supporting beam. The davit pipe is welded per the manufacturer and subject to a maximum imposed load of five kips in any direction and a maximum moment of 7.5 kip-feet applied in any orientation. Incoming steel beams connect with standard holes according to the structural plans.
PER PLAN TOS EL AT BEAM MAX LOAD IMPOSED P = 5k (ANY DIRECTION) CL BM MAX LOAD IMPOSED M = 7.5k-ft (RESULT OF LOAD "P", APPLIED IN ANY ORIENTATION 360° W/ RESPECT TO PLAN) GALV STL PIPE PER FALL ARREST PROTECTION MFR TOC EL VARIES PER PLAN WELD PER MFR STIFF PL3/8 IF INCOMING BM NOT PRESENT ON BOTH SIDES SUPT BM, PER PLAN INCOMING STL BM W/ C30 CONN W/ STD HOLES AT INCOMING BM, SEE PLAN CJP AT TOP FLG MAX 1'-6"
