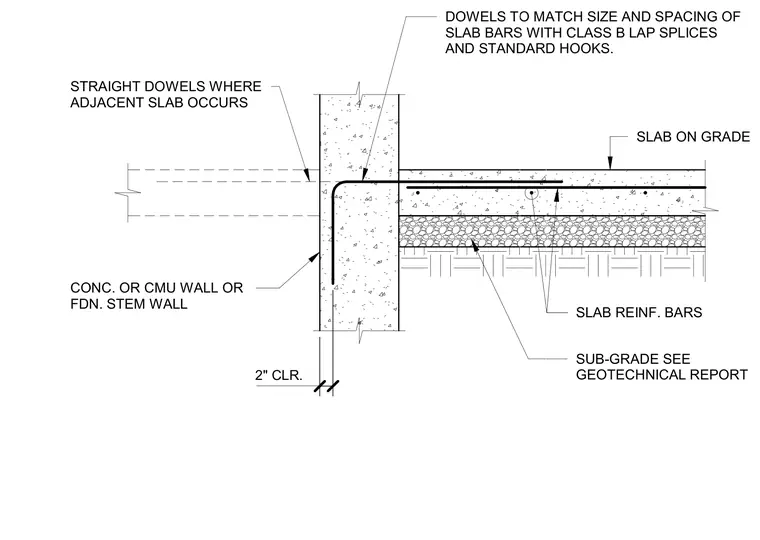

A concrete slab-on-grade meets a concrete or concrete masonry unit wall or foundation stem wall with a two-inch clear cover. Dowels match the size and spacing of the slab reinforcing bars, incorporating Class B lap splices and standard hooks into the stem wall. Straight dowels are provided where an adjacent slab occurs against the wall. The sub-grade is prepared per the geotechnical report.
2" CLR. DOWELS TO MATCH SIZE AND SPACING OF SLAB BARS WITH CLASS B LAP SPLICES AND STANDARD HOOKS. SLAB ON GRADE SLAB REINF. BARS SUB-GRADE SEE GEOTECHNICAL REPORT STRAIGHT DOWELS WHERE ADJACENT SLAB OCCURS CONC. OR CMU WALL OR FDN. STEM WALL .
