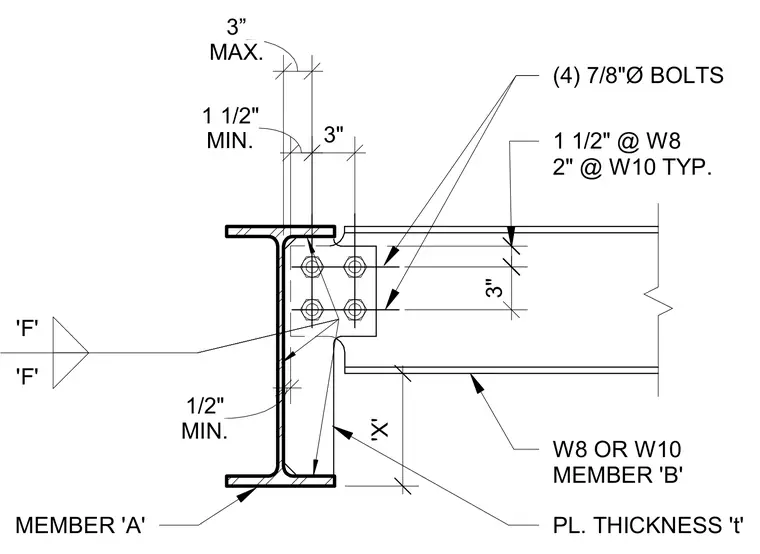

A W8 or W10 member connects to a supporting wide-flange member using a welded shear plate of thickness t. The connection utilizes four 7/8-inch diameter bolts arranged in a standard pattern. Dimensions specify edge distances, spacing, and clearances including one and one-half inch minimum and three inch maximum spacing.
W8 OR W10 MEMBER 'B' PL. THICKNESS 't' MEMBER 'A' (4) 7/8"Ø BOLTS 1 59/128" 3" 3" 1 1/2" @ W8 2" @ W10 TYP. MIN. 1/2" MIN. 1 1/2" MAX. 3” 'F' 'F' 'X'
