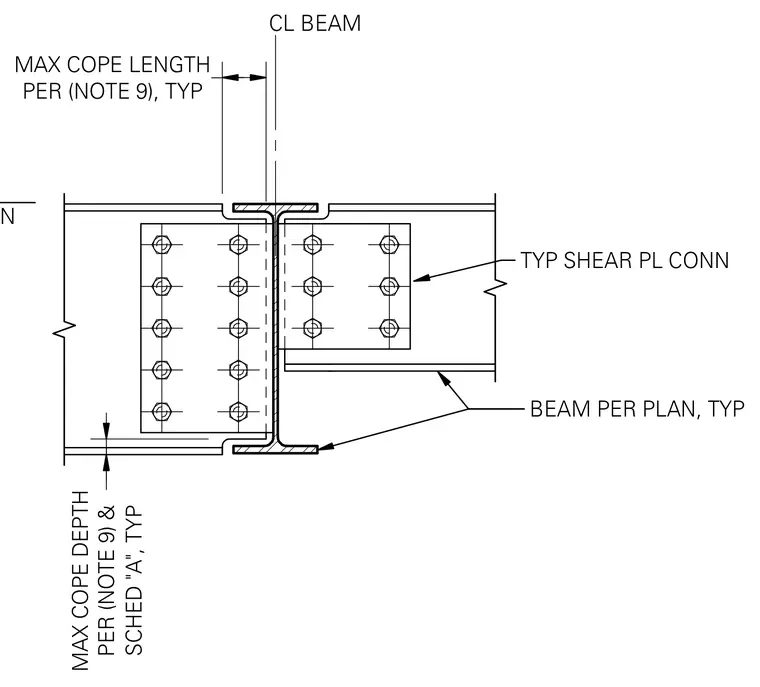

This structural detail shows a typical beam-to-beam shear plate connection framing into the centerline of a supporting beam. Both framing beams feature typical coped top and bottom flanges with maximum depth and length restrictions conforming to project specifications and schedules. A typical shear plate connects the web of the framing beam to the supporting member web using a multi-bolt configuration sized per plan. All member sizes and connection configurations follow the structural beam schedule and general notes.
TYP SHEAR PL CONN BEAM PER PLAN, TYP CL BEAM SCHED "A", TYP MAX COPE DEPTH PER (NOTE 9) & PER PLAN PER (NOTE 9), TYP MAX COPE LENGTH
