A structural steel column bears on a steel base plate set over non-shrink grout atop a concrete pier and footing. The concrete slab on grade features a blockout around the column that is poured solid after the steel column has been installed. Anchor bolts secure the base plate to the concrete pier with specified cover and vertical reinforcement. Three ties are provided in the top five inches of the concrete pier.

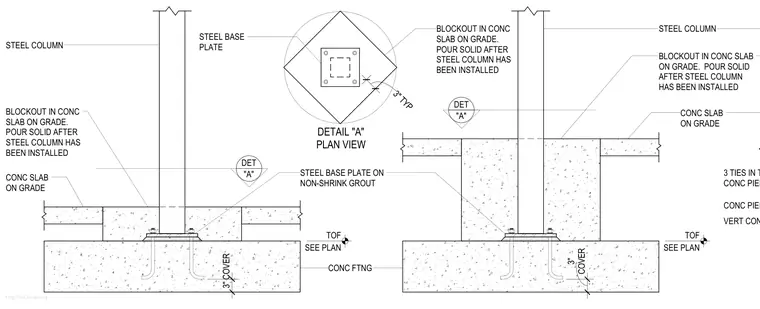

Ftng-Stl-Col-to-Ftng STEEL COLUMN CONC SLAB ON GRADE BLOCKOUT IN CONC SLAB ON GRADE. POUR SOLID AFTER STEEL COLUMN HAS BEEN INSTALLED STEEL BASE PLATE ON NON-SHRINK GROUT STEEL COLUMN CONC SLAB ON GRADE BLOCKOUT IN CONC SLAB ON GRADE. POUR SOLID AFTER STEEL COLUMN HAS BEEN INSTALLED CONC PIER CONC FTNG 3 TIES IN TOP 5" OF CONC PIER VERT CONC PIER REINF DETAIL "A" PLAN VIEW BLOCKOUT IN CONC SLAB ON GRADE. POUR SOLID AFTER STEEL COLUMN HAS BEEN INSTALLED STEEL BASE PLATE 3" TYP "A" DET "A" DET 3" COVER TOF SEE PLAN TOF SEE PLAN COVER 3"
