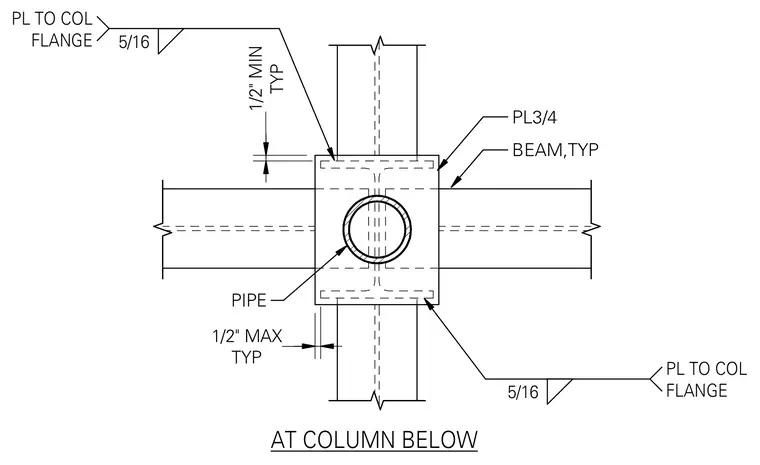

Three-quarter-inch plates connect to the column flange with typical five-sixteenth-inch fillet welds. Typical beams frame into the assembly. A vertical pipe passes through the connection zone, maintaining a one-half-inch minimum to one-half-inch maximum typical clearance.
AT COLUMN BELOW PIPE PL3/4 BEAM,TYP 5/16 PL TO COL FLANGE 5/16 PL TO COL FLANGE TYP 1/2" MIN TYP 1/2" MAX
