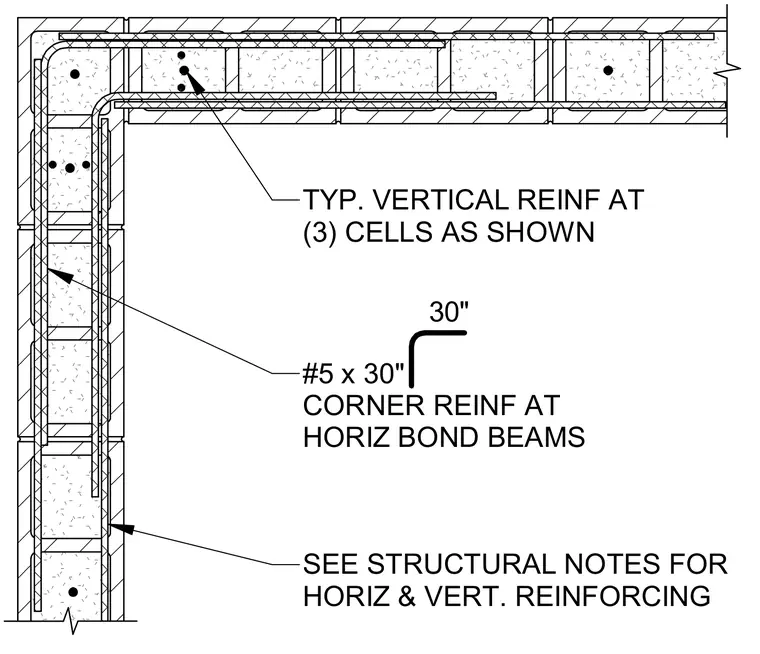

This concrete masonry unit corner wall assembly details horizontal and vertical reinforcing requirements. Vertical rebar is placed in three cells as shown, with horizontal bond beams reinforced by number five corner bars extending thirty inches. General horizontal and vertical reinforcing follows structural notes.
SEE STRUCTURAL NOTES FOR HORIZ & VERT. REINFORCING TYP. VERTICAL REINF AT (3) CELLS AS SHOWN #5 x 30" CORNER REINF AT HORIZ BOND BEAMS 30"
