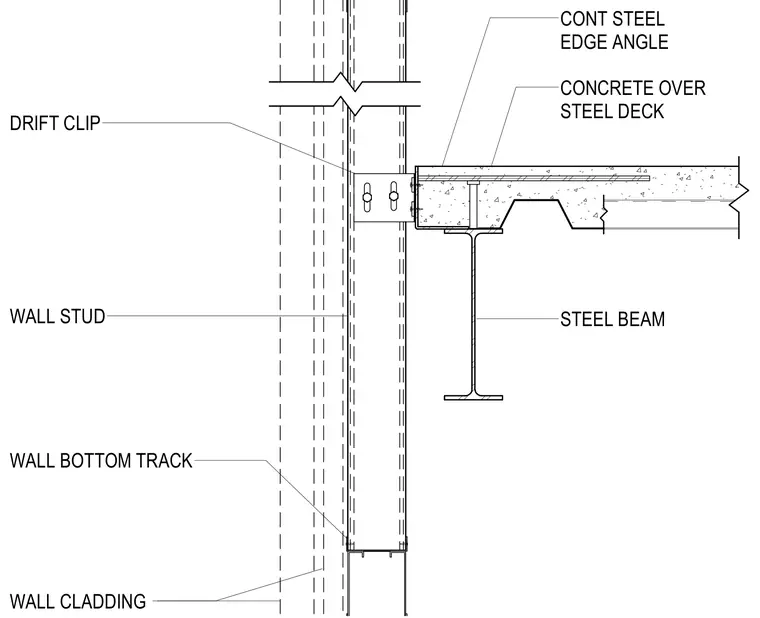

A cold-formed metal wall stud connects to a continuous steel edge angle supporting a concrete over steel deck floor system via a drift clip. The drift clip accommodates vertical movement between the exterior wall framing and the structural steel beam. Wall cladding attaches to the exterior face of the framing studs, and a bottom track guides the lower end of the assembly.
WALL STUD CONT STEEL EDGE ANGLE CONCRETE OVER STEEL DECK STEEL BEAM WALL CLADDING DRIFT CLIP WALL BOTTOM TRACK
