Structural · S-SMMNM

Typical Housekeeping Pad

Materials

anchor

Elements

Floors / Slabs Arches Anchors / Embeds

Connections

Base Plate / Anchorage

About this detail

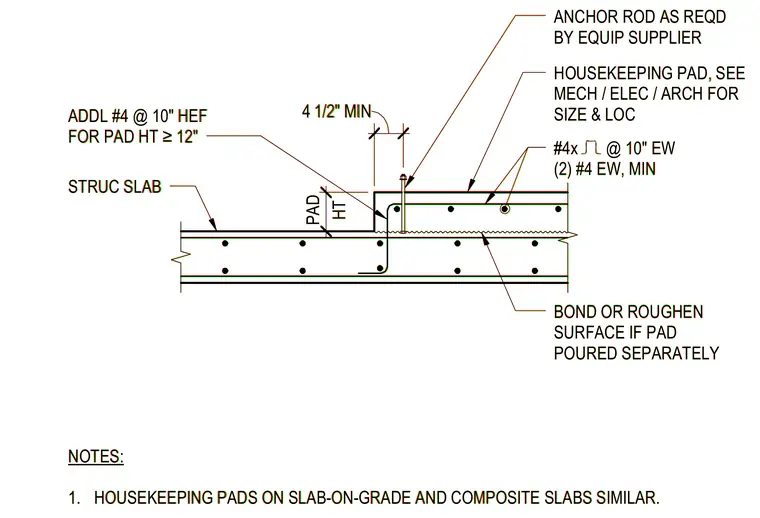

Concrete housekeeping pads on slab-on-grade and composite slabs share similar detailing requirements with a standard six-inch pad height. The interface between the separately poured pad and structural slab requires a bonded or roughened surface to ensure composite action. Reinforcing consists of a minimum of two number four bars each way, augmented by number four bars at ten inches each way and additional number four bars for embedment lengths when pad heights equal or exceed twelve inches. Anchor rods are installed per the equipment supplier specifications and sized in coordination with mechanical, electrical, and architectural disciplines.
