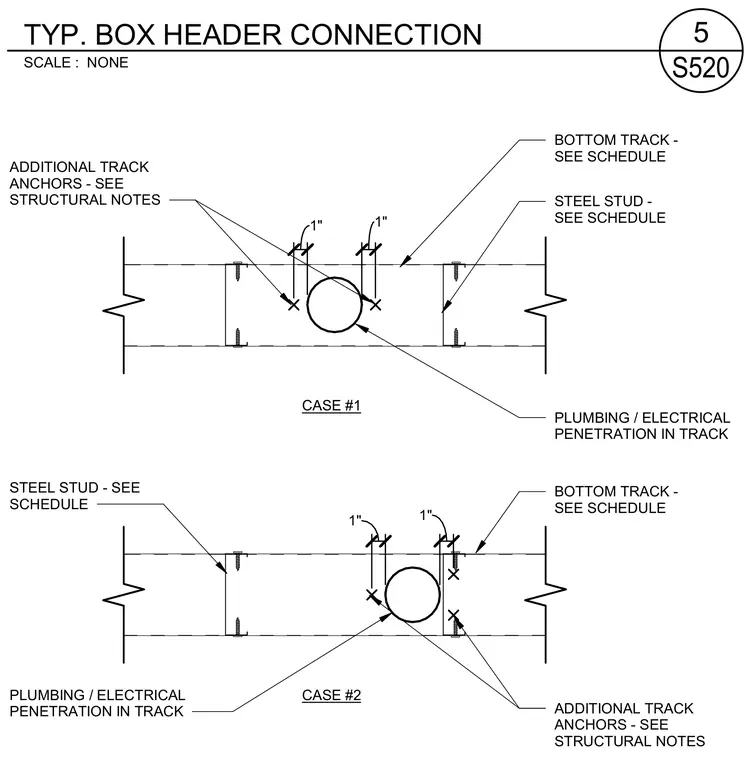

Cold-formed steel framing details plumbing and electrical service penetrations through the bottom track with additional track anchors spaced one inch from the cutout edges. Case one features a single penetration centered between adjacent steel studs with paired anchors on both sides. Case two features a penetration offset near a single steel stud with localized track anchors and fasteners. Sizing for the bottom track and steel studs is specified per the project schedule.
1" 1" 1" 1" CASE #1 CASE #2 ADDITIONAL TRACK ANCHORS - SEE STRUCTURAL NOTES BOTTOM TRACK - SEE SCHEDULE STEEL STUD - SEE SCHEDULE PLUMBING / ELECTRICAL PENETRATION IN TRACK BOTTOM TRACK - SEE SCHEDULE ADDITIONAL TRACK ANCHORS - SEE STRUCTURAL NOTES PLUMBING / ELECTRICAL PENETRATION IN TRACK STEEL STUD - SEE SCHEDULE SCALE : NONE S520 5 TYP. BOX HEADER CONNECTION
