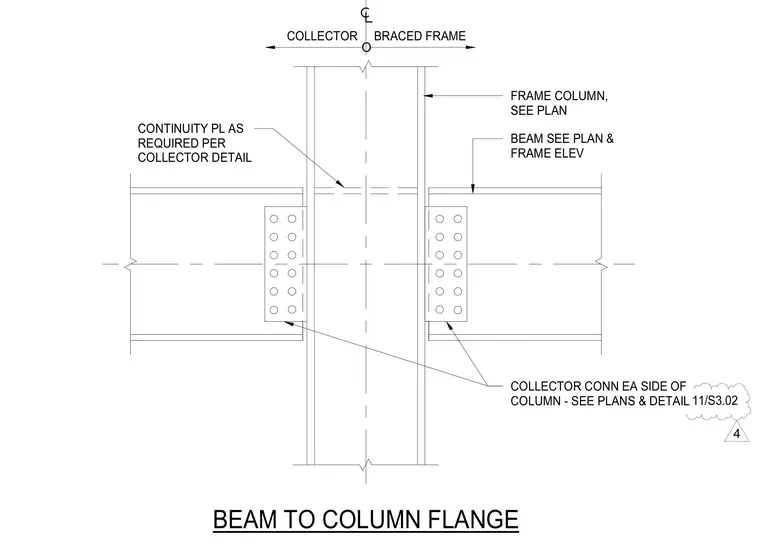

A structural steel beam connects to each side of a frame column flange using bolted connections sized per the structural plans and frame elevations. Continuity plates are installed within the column web as required per the collector detail. Collector connections are provided on each side of the column per the structural plans and detail 11/S3.02.
COLLECTOR CONN EA SIDE OF COLUMN - SEE PLANS & DETAIL BEAM SEE PLAN & FRAME ELEV FRAME COLUMN, SEE PLAN CONTINUITY PL AS REQUIRED PER COLLECTOR DETAIL O BRACED FRAME COLLECTOR BEAM TO COLUMN FLANGE 11/S3.02 4
