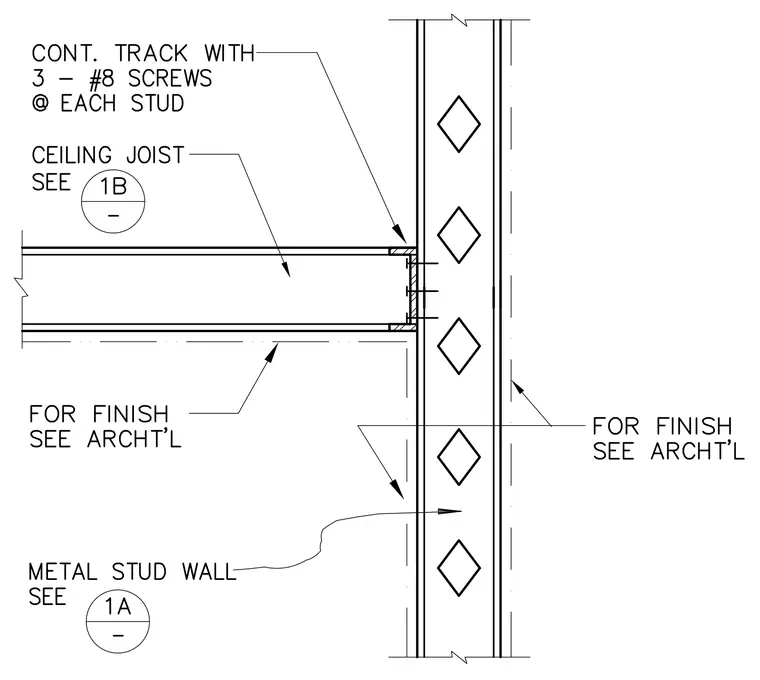

A continuous track is fastened to the metal stud wall with three number eight screws at each stud. A ceiling joist frames into the partition wall with finishes specified per architectural drawings. The metal stud wall assembly ties back to structural framing details indicated on referenced sheets.
