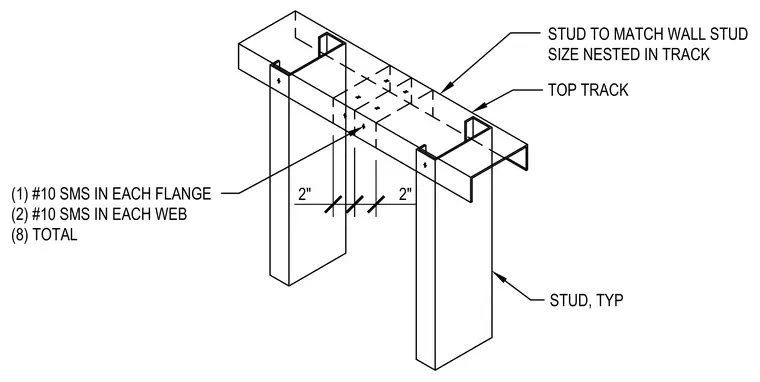

A top track splice assembly connects running lengths of light-gauge framing tracks using a matching nested track segment. The splice utilizes a nested top track matching the wall stud size centered over the joint. Fastener attachment consists of one number ten sheet metal screw in each flange and two number ten sheet metal screws in each web, totaling eight fasteners across the connection.
STUD, TYP TOP TRACK STUD TO MATCH WALL STUD SIZE NESTED IN TRACK 2" 2" (1) #10 SMS IN EACH FLANGE (2) #10 SMS IN EACH WEB (8) TOTAL
