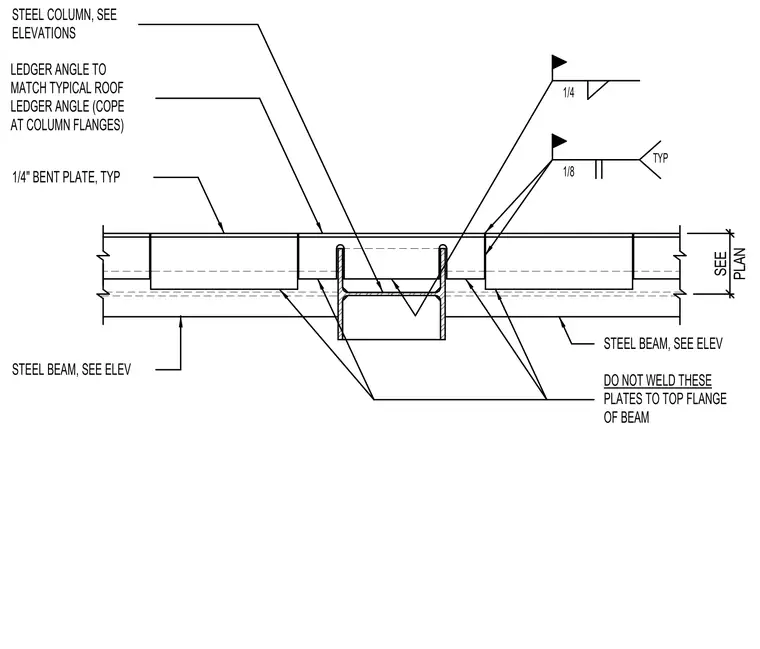

A one-quarter-inch bent plate spans between steel beams sized per plan at a steel column shown in elevations. A ledger angle matches the typical roof ledger angle and cops at the column flanges. A one-quarter-inch fillet weld and a one-eighth-inch typical gap connect the assembly components. The bent plates are left unwelded to the top flange of the beam.
1/8 TYP 1/4 STEEL BEAM, SEE ELEV DO NOT WELD THESE PLATES TO TOP FLANGE OF BEAM STEEL BEAM, SEE ELEV 1/4" BENT PLATE, TYP STEEL COLUMN, SEE ELEVATIONS LEDGER ANGLE TO MATCH TYPICAL ROOF LEDGER ANGLE (COPE AT COLUMN FLANGES) SEE PLAN
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
