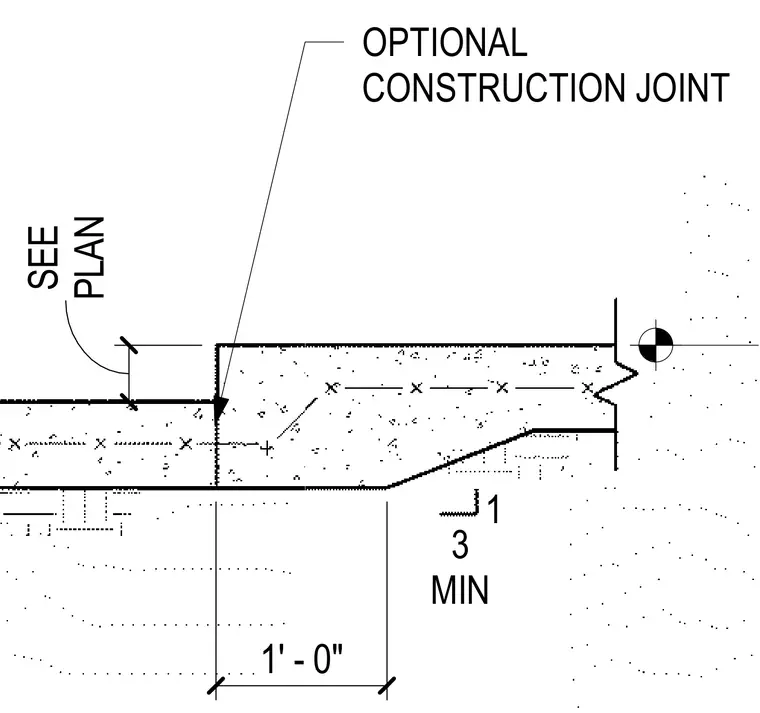

An optional construction joint is detailed within a concrete slab featuring a stepped transition. The thickened slab section extends with a minimum dimension of three inches and a length of one foot zero inches, sized per plan.
