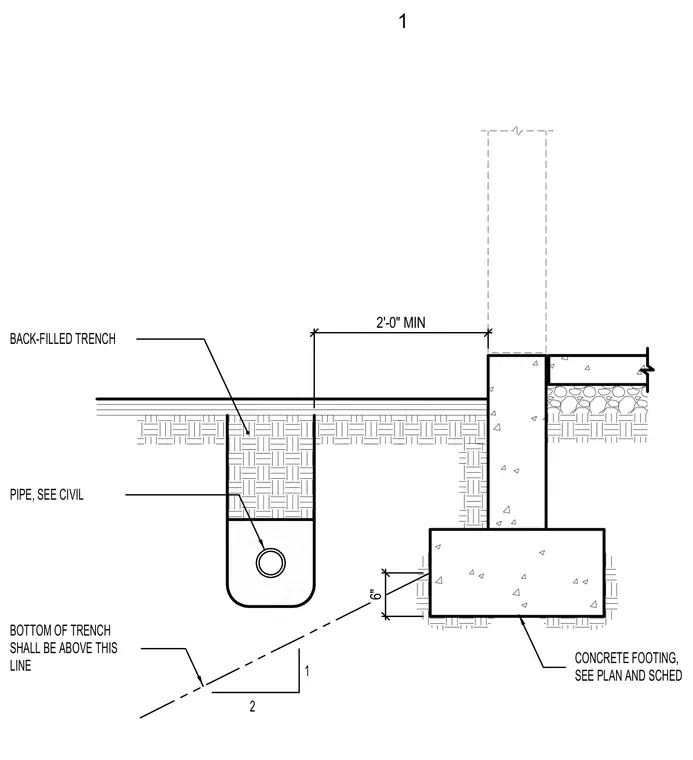

A utility pipe is housed inside a backfilled trench running parallel to a concrete footing. The bottom of the trench must remain above a line projected at a two-to-one slope from six inches above the bottom of the footing. A minimum horizontal clearance of two feet is maintained between the footing and the edge of the trench. The concrete footing and slab are sized per plan and schedule.
BACK-FILLED TRENCH PIPE, SEE CIVIL BOTTOM OF TRENCH SHALL BE ABOVE THIS LINE CONCRETE FOOTING, SEE PLAN AND SCHED 1 2 2'-0" MIN 6" 1
