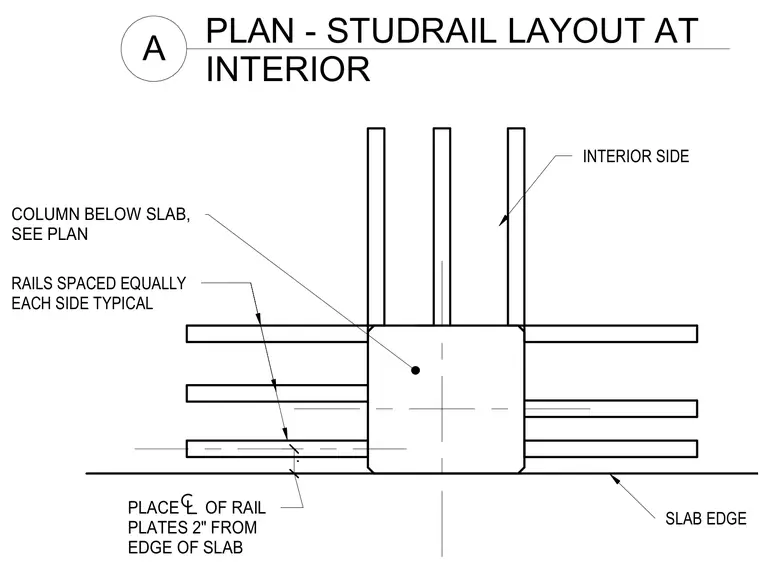

Studrails are arranged radially around an interior column below the slab and spaced equally on each side as typical shear reinforcement. The centerline of the rail plates is positioned two inches from the slab edge. Rails extend outward toward the interior side of the slab relative to the column location.
. PLACE OF RAIL PLATES 2" FROM EDGE OF SLAB RAILS SPACED EQUALLY EACH SIDE TYPICAL SLAB EDGE INTERIOR SIDE A PLAN - STUDRAIL LAYOUT AT INTERIOR COLUMN BELOW SLAB, SEE PLAN
