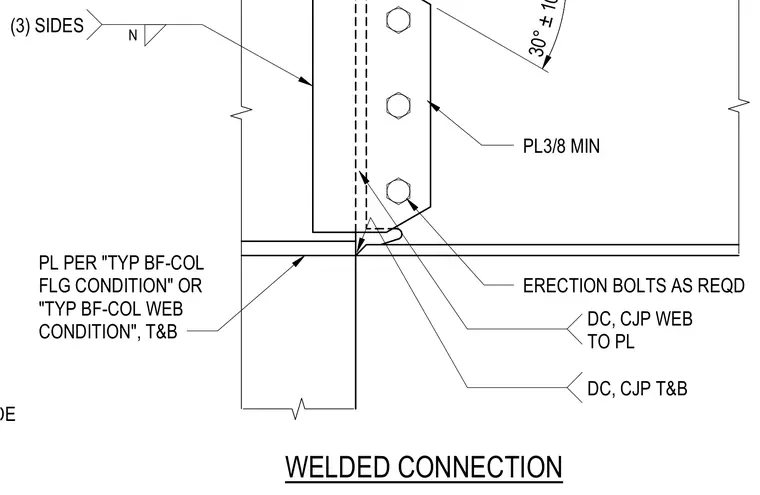

The supported beam connects to the column flange or web using top and bottom plates welded with complete joint penetration welds and a minimum three-eighths-inch plate shear tab secured with erection bolts as required. Additional plate sizing follows standard beam flange to column flange or web conditions with a thirty-degree bevel specification and one-half-inch plates for Grade A490 bolts.
DC, CJP WEB TO PL DC, CJP T&B PL PER "TYP BF-COL FLG CONDITION" OR "TYP BF-COL WEB CONDITION", T&B (3) SIDES N PL3/8 MIN ERECTION BOLTS AS REQD 30° ± 10° AND PL1/2 FOR GRADE A490 BOLTS. WHERE A BOLTED SHEAR TAB DOES NOT PROVIDE WELDED CONNECTION
