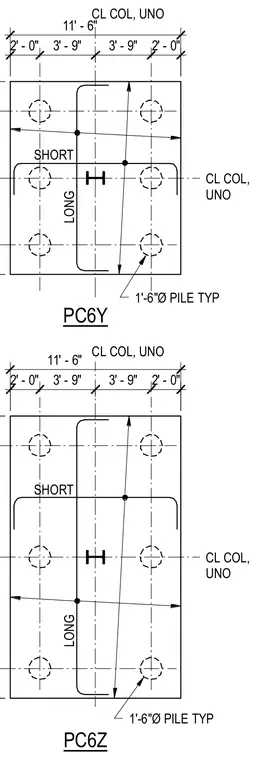

These structural plans detail concrete pile caps designated PC6Y and PC6Z supporting a central column. Each pile cap measures 11 feet 6 inches wide and is supported by four to six typical 1-foot 6-inch diameter piles positioned symmetrically. Reinforcing bars are indicated in both short and long directions with precise dimensional offsets from the column centerlines. Centerlines of the column are aligned as noted unless otherwise specified.
PC6Y CL COL, UNO CL COL, UNO 11' - 6" 2' - 0" 3' - 9" 3' - 9" 2' - 0" 1'-6"Ø PILE TYP SHORT LONG PC6Z CL COL, UNO CL COL, UNO 11' - 6" 2' - 0" 3' - 9" 3' - 9" 2' - 0" 1'-6"Ø PILE TYP SHORT LONG
