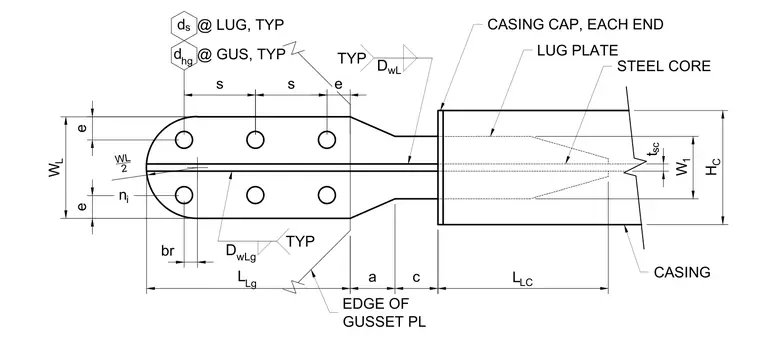

A structural steel core connects to a lug plate with a casing cap at each end and an outer casing. The lug plate extends into a slotted or sandwiched connection with edge distances, fastener spacings, and weld sizes specified by variables. Fillet welds join the lug plate and casing components per typical notes. Edge distances and pitch dimensions are designated across the lug plate assembly.
a c L LC L Lg br D wLg TYP WL 2 W L e e s s e n i STEEL CORE D wL TYP W 1 t sc H C CASING LUG PLATE CASING CAP, EACH END EDGE OF GUSSET PL d hg @ GUS, TYP d s @ LUG, TYP
