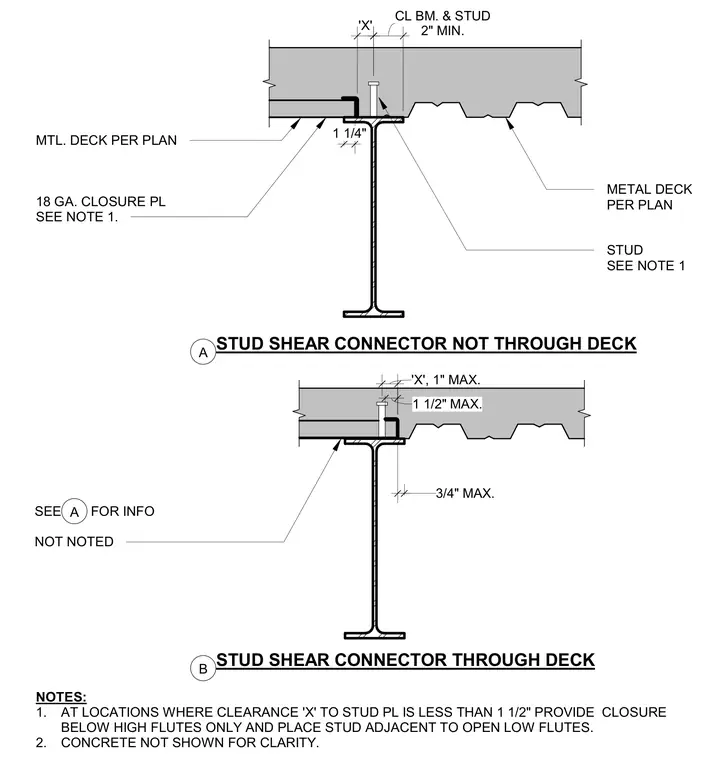

Steel beam and metal deck assembly detailing stud shear connector installation requirements with and without deck penetration. The top detail features a shear stud positioned adjacent to the metal deck with an 18-gauge closure plate and a minimum two-inch clearance from the beam and stud centerline. The bottom detail includes a stud shear connector passing through the metal deck. Notes specify that when clearance 'X' to the stud plate is less than one and one-half inches, an 18-gauge closure plate is provided below high flutes only, with the stud placed adjacent to open low flutes.
1 1/4" 'X' 2" MIN. CL BM. & STUD STUD SEE NOTE 1 METAL DECK PER PLAN MTL. DECK PER PLAN 3/4" MAX. 18 GA. CLOSURE PL SEE NOTE 1. STUD SHEAR CONNECTOR NOT THROUGH DECK STUD SHEAR CONNECTOR THROUGH DECK NOTES: 1. AT LOCATIONS WHERE CLEARANCE 'X' TO STUD PL IS LESS THAN 1 1/2" PROVIDE CLOSURE BELOW HIGH FLUTES ONLY AND PLACE STUD ADJACENT TO OPEN LOW FLUTES. 2. CONCRETE NOT SHOWN FOR CLARITY. A B SEE FOR INFO NOT NOTED A 1 1/2" MAX. 'X', 1" MAX.
