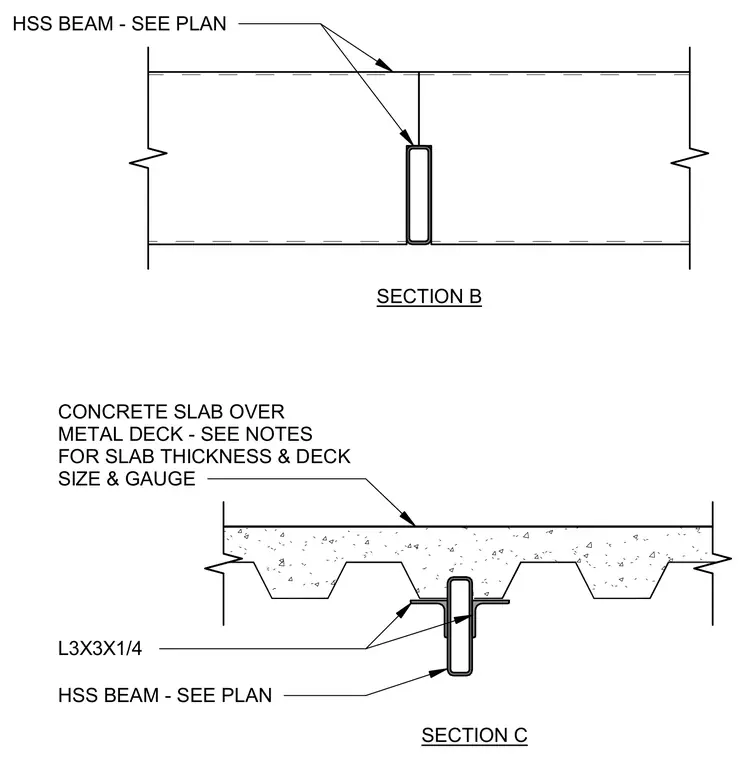

A hollow structural section beam supports a concrete slab poured over metal deck. An angle profile measuring L3x3x1/4 is integrated into the structural framing at the beam junction. Slab thickness, deck size, and gauge are specified in the structural notes.
HSS BEAM - SEE PLAN SECTION B SECTION C L3X3X1/4 HSS BEAM - SEE PLAN CONCRETE SLAB OVER METAL DECK - SEE NOTES FOR SLAB THICKNESS & DECK SIZE & GAUGE
