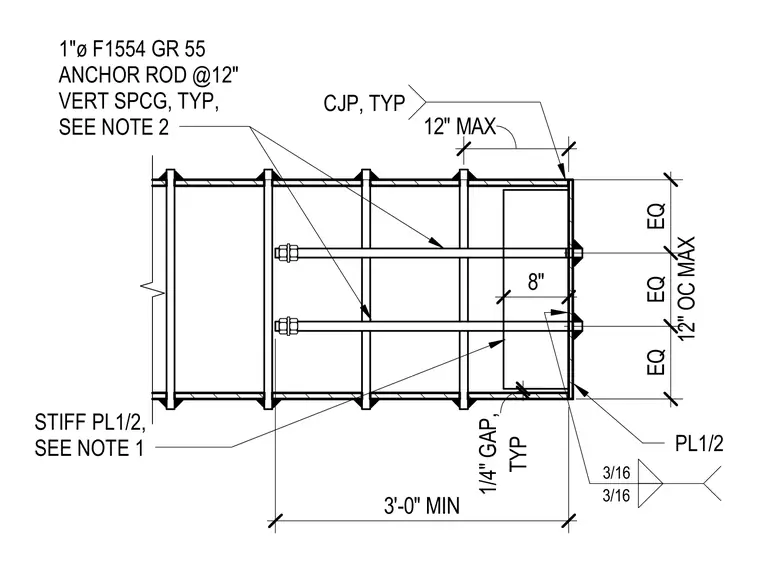

A nominal wall assembly features a one-half inch thick steel plate connected with one-inch diameter ASTM F1554 Grade 55 anchor rods spaced at twelve inches on center vertically. One-half inch stiffener plates are spaced at eight inches typically with a quarter-inch gap. Complete joint penetration welds are specified typically throughout the assembly, supplemented by three-sixteenths inch fillet welds.
1"ø F1554 GR 55 ANCHOR ROD @12" VERT SPCG, TYP, SEE NOTE 2 CJP, TYP EQ 12" OC MAX EQ EQ 3'-0" MIN PL1/2 STIFF PL1/2, SEE NOTE 1 3/16 3/16 12" MAX 8" TYP 1/4" GAP,
