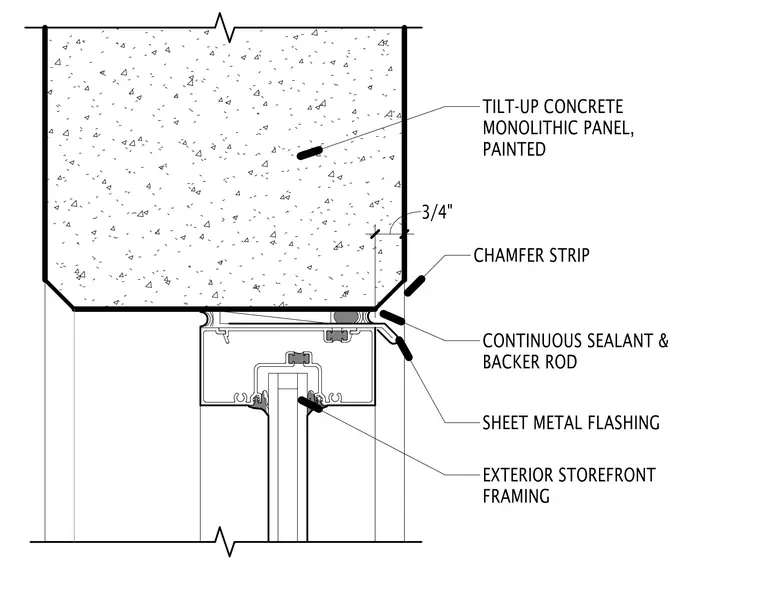

An exterior aluminum storefront head frames the top of the glazed opening directly beneath a painted tilt-up concrete monolithic panel. A chamfer strip shapes the exterior concrete corner above the assembly. Sheet metal flashing ties into the concrete soffit, sealed with a continuous bead of sealant backed by a backer rod.
EXTERIOR STOREFRONT FRAMING TILT-UP CONCRETE MONOLITHIC PANEL, PAINTED CHAMFER STRIP CONTINUOUS SEALANT & BACKER ROD SHEET METAL FLASHING 3/4"
