Metal deck floor openings are framed with channel members such as C6 and C8 shapes placed around the perimeter. Channel ends connect using either a two-bolt beam connection or a quarter-inch fillet weld four inches long at each side of the web typically. Closure plates and trim reinforcing elements close out the deck edge with a two-inch clearance. The metal deck is attached to the framing per the project deck schedule typically. Openings exceeding forty-eight inches in maximum dimension require notification to the engineer for structural design.

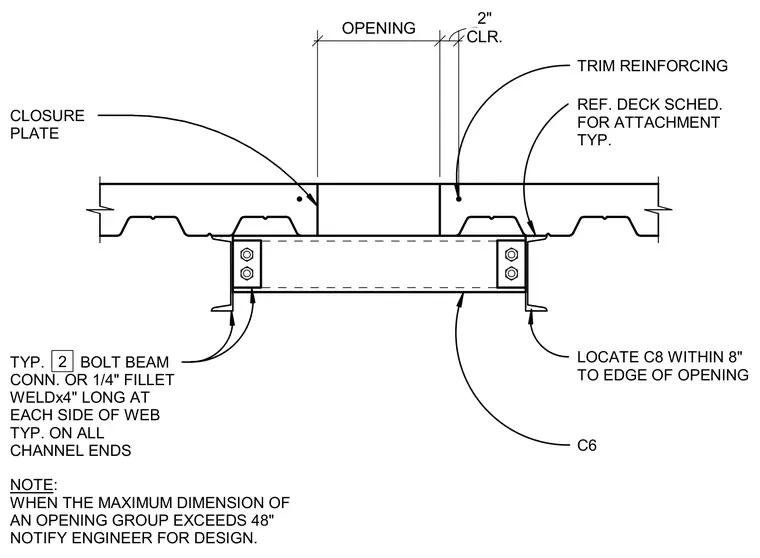

CLOSURE PLATE TRIM REINFORCING OPENING CLR. 2" NOTE: WHEN THE MAXIMUM DIMENSION OF AN OPENING GROUP EXCEEDS 48" NOTIFY ENGINEER FOR DESIGN. LOCATE C8 WITHIN 8" TO EDGE OF OPENING TYP. BOLT BEAM CONN. OR 1/4" FILLET WELDx4" LONG AT EACH SIDE OF WEB TYP. ON ALL CHANNEL ENDS 2 C6 REF. DECK SCHED. FOR ATTACHMENT TYP.
