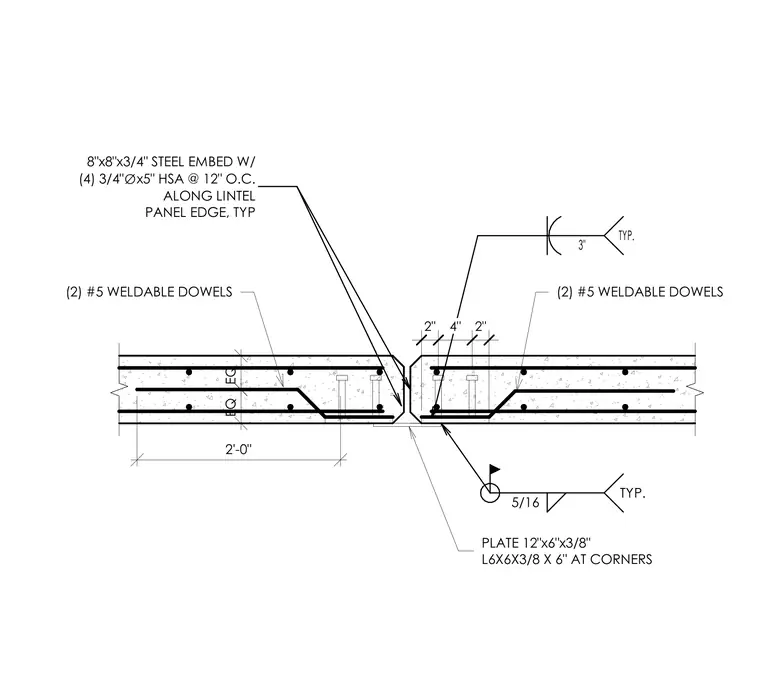

Vertical joint between two tilt-up concrete panels with 8-inch by 8-inch by 3/4-inch steel embed plates anchored by four 3/4-inch diameter by 5-inch long heavy-duty sleeve anchors spaced at 12 inches on center along the lintel panel edge. Two number 5 weldable dowels provide continuity at each panel edge. A 12-inch by 6-inch by 3/8-inch plate and an L6x6x3/8 angle, 6 inches long, secure the corners with a 5/16-inch fillet weld. The reinforcement layout maintains a 2-foot typical spacing for the dowel configuration, with 2-inch and 4-inch clearances at the joint interface.
Text on the drawing
EQ EQ 2'-0" TYP. 5/16 TYP. 3" PLATE 12"x6"x3/8" L6X6X3/8 X 6" AT CORNERS 8"x8"x3/4" STEEL EMBED W/ (4) 3/4" ∅ x5" HSA @ 12" O.C. ALONG LINTEL PANEL EDGE, TYP (2) #5 WELDABLE DOWELS (2) #5 WELDABLE DOWELS 2" 4" 2" N.T.S S202 15 TYP PANEL REINFORCING
