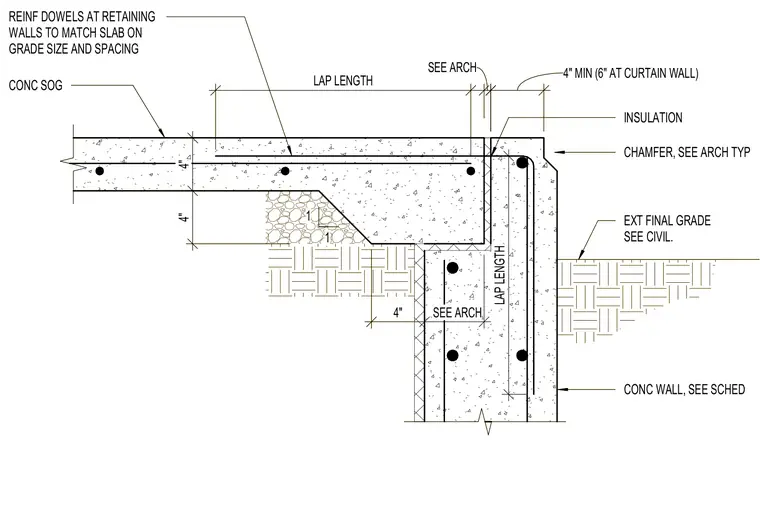

A concrete slab on grade bears on a perimeter concrete wall, utilizing reinforcing dowels extending from the wall to match the slab on grade size and spacing with a specified lap length. A four inch minimum slab thickness is required, increasing to six inches at curtain walls, separated from the exterior wall by vertical insulation. The exterior concrete wall includes a chamfer at the upper outside edge and connects to exterior final grade as sized per civil drawings.
4" SEE ARCH 4" 4" SEE ARCH INSULATION CONC WALL, SEE SCHED 1 1 EXT FINAL GRADE SEE CIVIL. CHAMFER, SEE ARCH TYP CONC SOG 4" MIN (6" AT CURTAIN WALL) LAP LENGTH REINF DOWELS AT RETAINING WALLS TO MATCH SLAB ON GRADE SIZE AND SPACING LAP LENGTH 4" SEE ARCH 4" 4" SEE ARCH INSULATION CONC WALL, SEE SCHED 1 1 EXT FINAL GRADE SEE CIVIL. CHAMFER, SEE ARCH TYP CONC SOG 4" MIN (6" AT CURTAIN WALL) LAP LENGTH REINF DOWELS AT RETAINING WALLS TO MATCH SLAB ON GRADE SIZE AND SPACING LAP LENGTH
