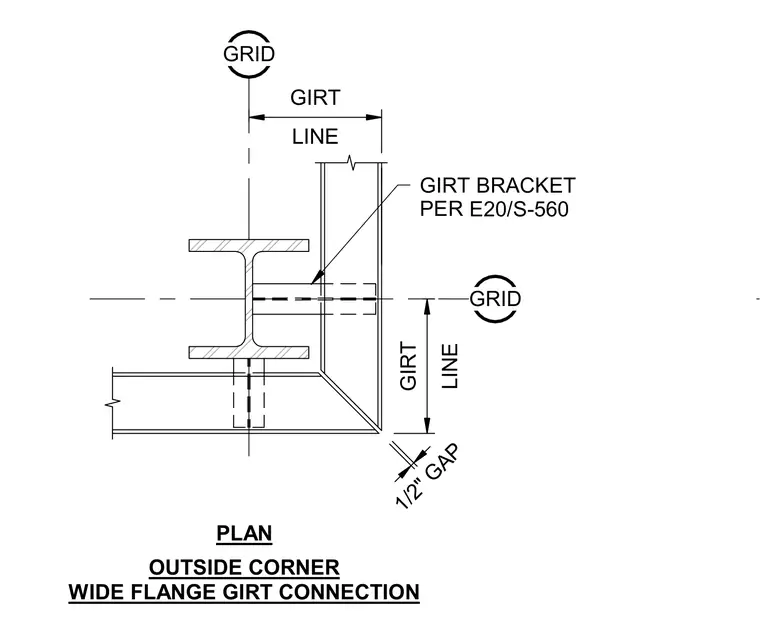

An outside corner wide flange girt connection aligns with the grid line and features a one-half inch gap at the exterior corner. A girt bracket provides the connection per sheet E20/S-560.
OUTSIDE CORNER WIDE FLANGE GIRT CONNECTION PLAN GRID GRID GIRT BRACKET PER P LINE GIRT 1/2" GAP LINE GIRT E20/S-560
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
