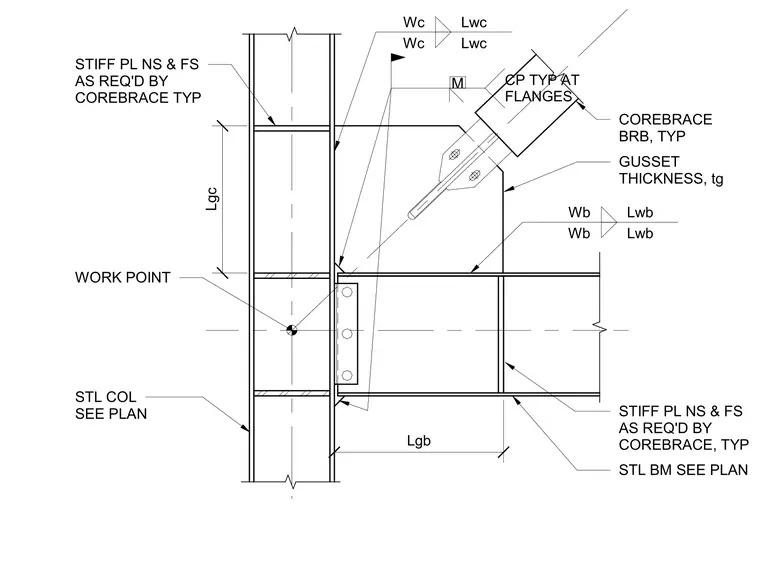

A buckling-restrained brace connects to a steel column and a steel beam through a gusset plate welded at the framing intersection. Stiffener plates are welded to the near side and far side of the column and beam flanges as required by the brace manufacturer. The gusset plate thickness and weld sizes for the column and beam connections are specified on the plan. The assembly features centered work points for structural alignment and clearance cuts at the brace flanges.
CP TYP AT FLANGES STIFF PL NS & FS AS REQ'D BY COREBRACE TYP COREBRACE BRB, TYP Wc Lwc Wc Lwc Wb Lwb Wb Lwb GUSSET THICKNESS, tg STIFF PL NS & FS AS REQ'D BY COREBRACE, TYP STL BM SEE PLAN WORK POINT STL COL SEE PLAN Lgb Lgc M
