Structural · S-SK35G

Typical Closure Plate Overhang

Materials

Concrete Steel Timber / Wood Brick Metal (misc.)

Elements

Walls Curtain Walls Facades / Cladding Roofs Decks Arches Connections / Plates

About this detail

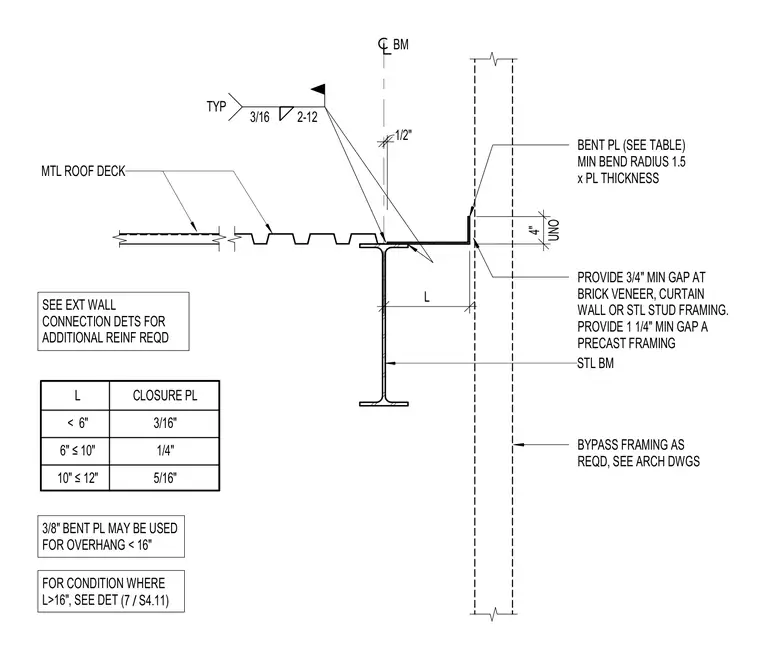

A bent steel plate acts as a closure at the metal roof deck overhang, bearing on a steel beam and sized according to the overhang length table. The plate features a minimum bend radius of 1.5 times the plate thickness and a standard four-inch vertical leg height. A three-sixteenths inch fillet weld with two-inch by twelve-inch typical spacing connects the assembly. Minimum clearances are maintained with a three-quarters inch gap at brick veneer, curtain wall, or steel stud framing, and a one and one-quarter inch gap at precast framing. Bypass framing is provided as required per architectural drawings, with additional reinforcement detailed on exterior wall connection details.
