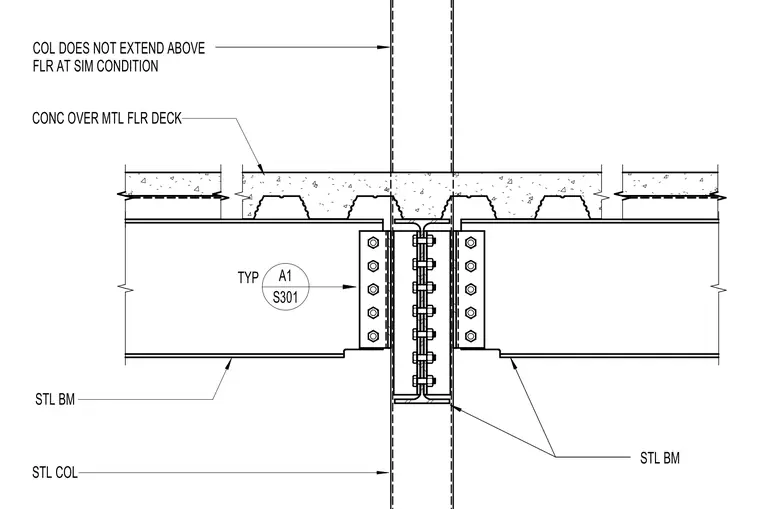

A steel column terminates below the floor level, where steel beams frame into a concrete slab over a metal floor deck. The steel beams connect using bolted web connection plates to the column flange. The concrete floor deck spans continuously across the framing assembly with the column terminating at a similar condition.
STL COL STL BM COL DOES NOT EXTEND ABOVE FLR AT SIM CONDITION CONC OVER MTL FLR DECK STL BM A1 S301 TYP
