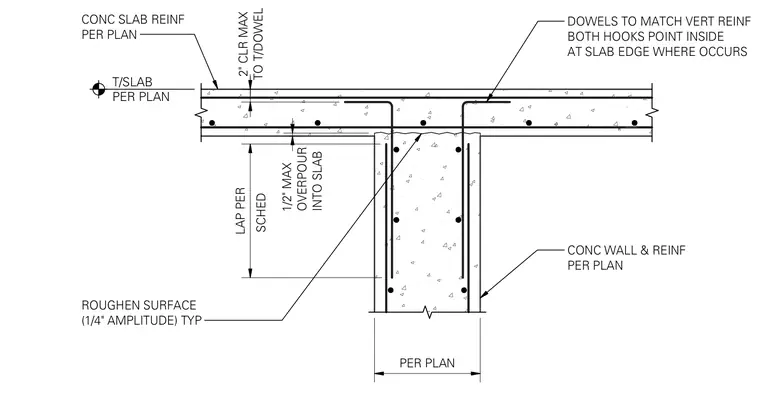

A concrete slab connects to a reinforced concrete wall using vertical dowels that match the vertical reinforcement and feature inward-pointing hooks at the slab edge. The top of the wall surface is roughened to a one-quarter-inch amplitude with a maximum one-half-inch overpour into the slab. Slab reinforcement and wall dimensions are sized per plan, maintaining a maximum two-inch clearance to the top of the dowel with lap lengths per schedule.
PER PLAN DOWELS TO MATCH VERT REINF BOTH HOOKS POINT INSIDE AT SLAB EDGE WHERE OCCURS CONC WALL & REINF PER PLAN CONC SLAB REINF PER PLAN ROUGHEN SURFACE (1/4" AMPLITUDE) TYP 1/2" MAX OVERPOUR INTO SLAB T/SLAB PER PLAN SCHED LAP PER TO T/DOWEL 2" CLR MAX
